Soft Matter Demos
This website is aimed at distributing interactive simulation demos that illustrate the wonderful world of soft matter physics.
Our first demo is now available for download!
This is an interactive simulation demonstrating self-assembly: particles organizing themselves into different structures. You can use it to simulate the behavior of a box full of particles, and see how they form gases, liquids, and crystals based on the density and temperature. The included models are:

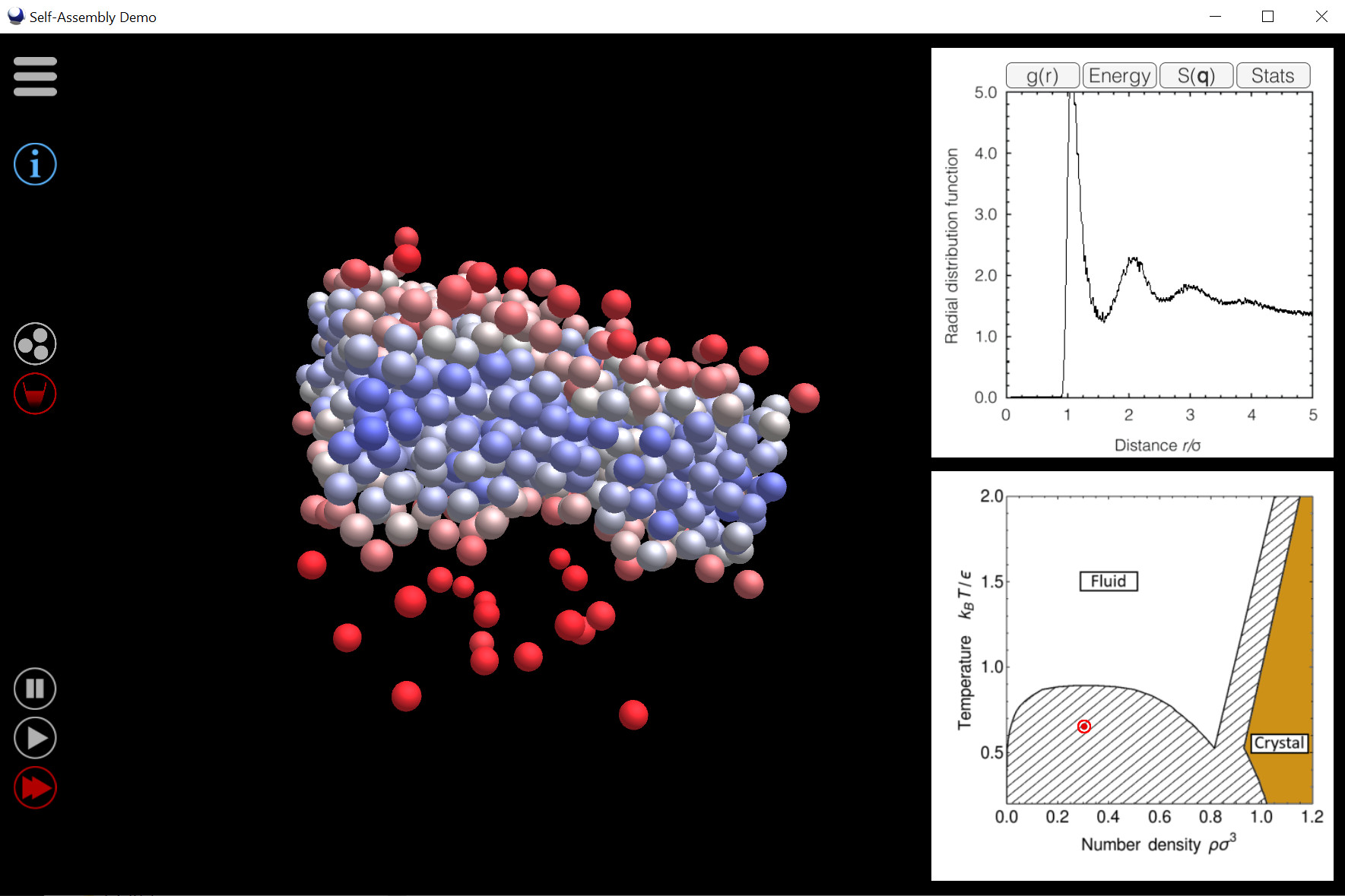

- Square-well particles (3D)
This is a three-dimensional simulation of simple spherical particles which attract each other if they are close to each other. At high densities, they will eventually form a face-centered-cubic crystal. For strong attractions, the particles will cluster together, forming dense liquid droplets which may then freeze into a crystal.
- Square-well particles (2D)
In two dimensions, the square-well model instead forms a hexagonal crystal, and again shows a gas-liquid transition.
- Patchy particles (2D)
These are two-dimensional simulations of circular particles that each have a few attractive patches on their surface: you can choose between three, four, and five. These particles only attract each other when two of these patches are close to each other. This means they like to form crystal structures that match the way patches are placed on the particles. For example, when each particle has four patches, arranged on the corners of a square, then the crystal they like to form is a square lattice. Similarly, three-patch particles form a honeycomb lattice. Five-patch particles, on the other hand, are much harder to predict, and can form so-called quasicrystals: strange patterns that (unlike normal crystals) are not periodic.
- Square-shoulder particles (2D)
This is another two-dimensional model which can form quasicrystals, but here the particles repel each other when they come close. This also allows them to form two different hexagonal phases: one at low density, and one at high density.
- Vitrimers (3D)
This is a three-dimensional model for so-called vitrimers: a fairly recently invented class of polymers. Vitrimers consists of a two types of building blocks (let's say blue and red) bonded into a network structure. Bonds can only form between a blue and a red particle, and are too strong to ever break. However, if a particle has multiple possible bonding partners nearby, it will occasionally switch partners, so that the network can still rearrange and flow. Here, the units are again modeled as spheres with attractive patches. You will not see crystals here, but you can observe the formation of the bonding network, and see how playing with the number of blue and red particles changes its structure.

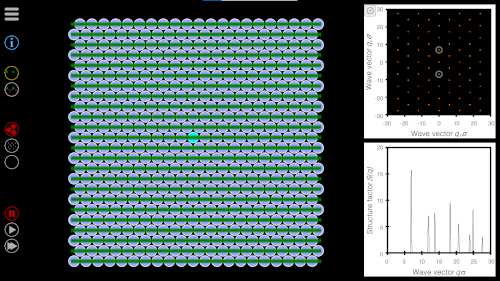

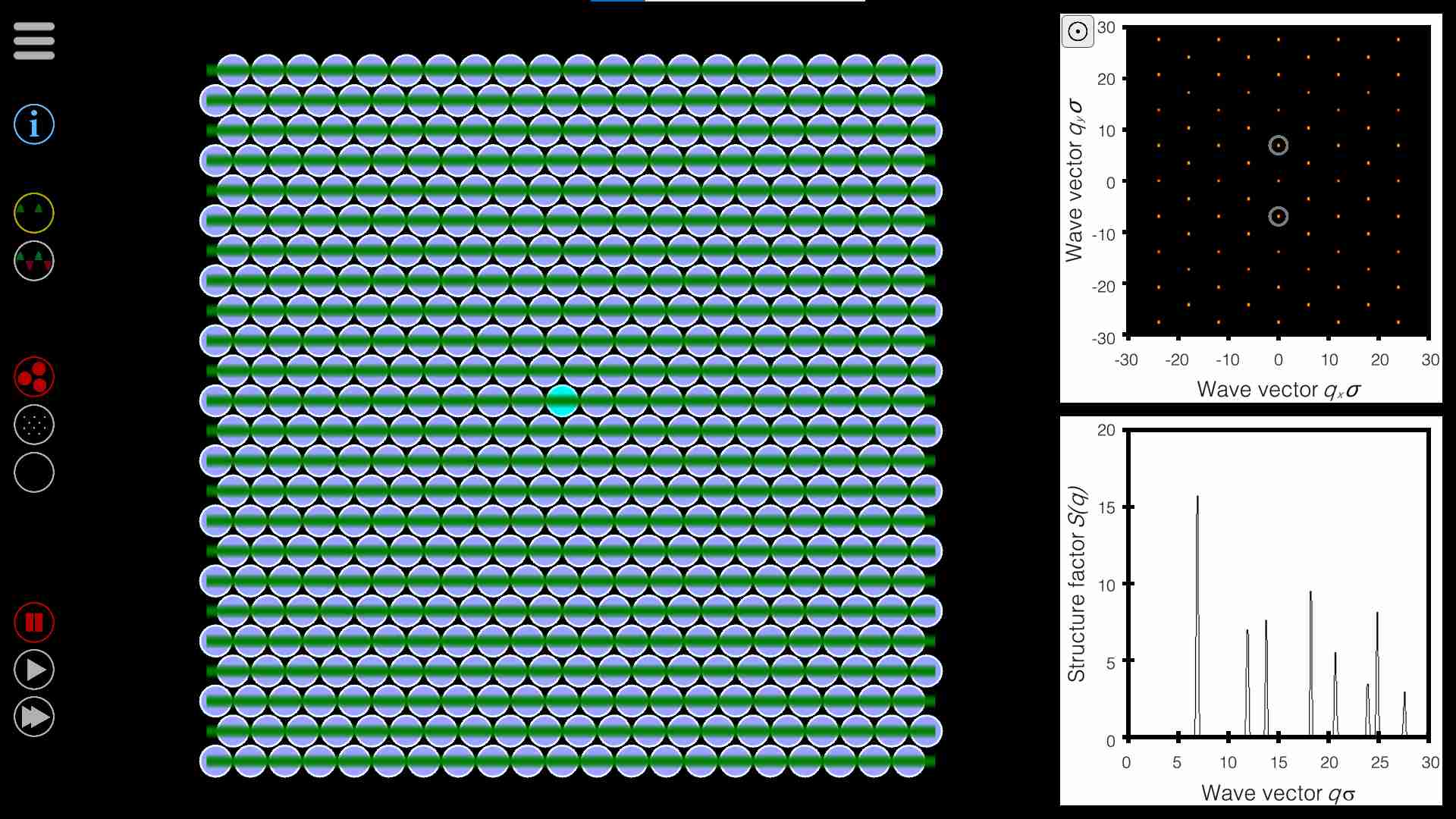

For all models, system parameters can be changed on the fly, and the demo can plot various characteristics of the system (radial distribution function, structure factor, potential energy).
The demo is currently available for Windows only. A Linux version is in the works.
Instructions: simply download the .zip file, unpack it, and run the Sim.exe program found inside. Alternatively, download the Windows installer, and execute it.
Who are we?
|Frank Smallenburg||Development & Program Design|
|Laura Filion||Program Design|
|Rinske M. Alkemade||Graphics Design|
If you have any questions or comments, please contact us at firstname.lastname@example.org
